80mm Wide Ball Screw Linear Actuator — Dual MGN Rails | Compact Industrial-Grade
Overview

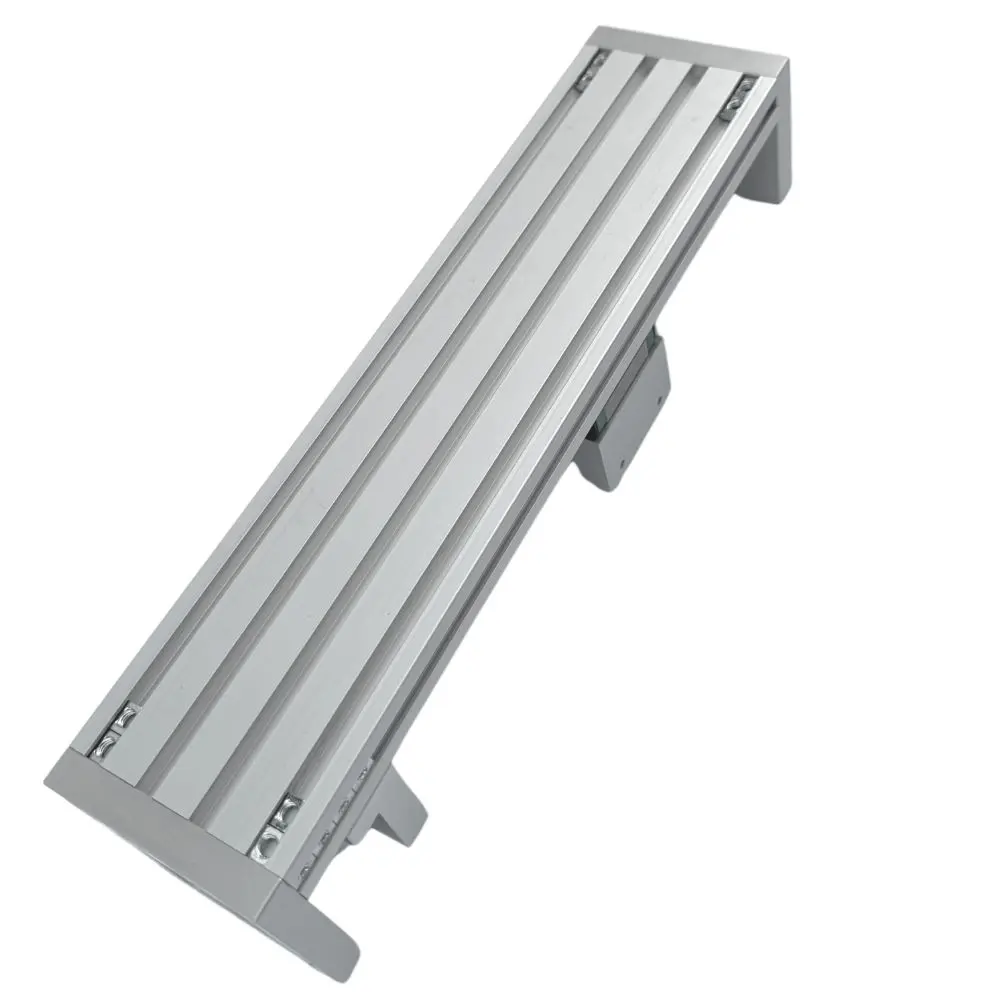

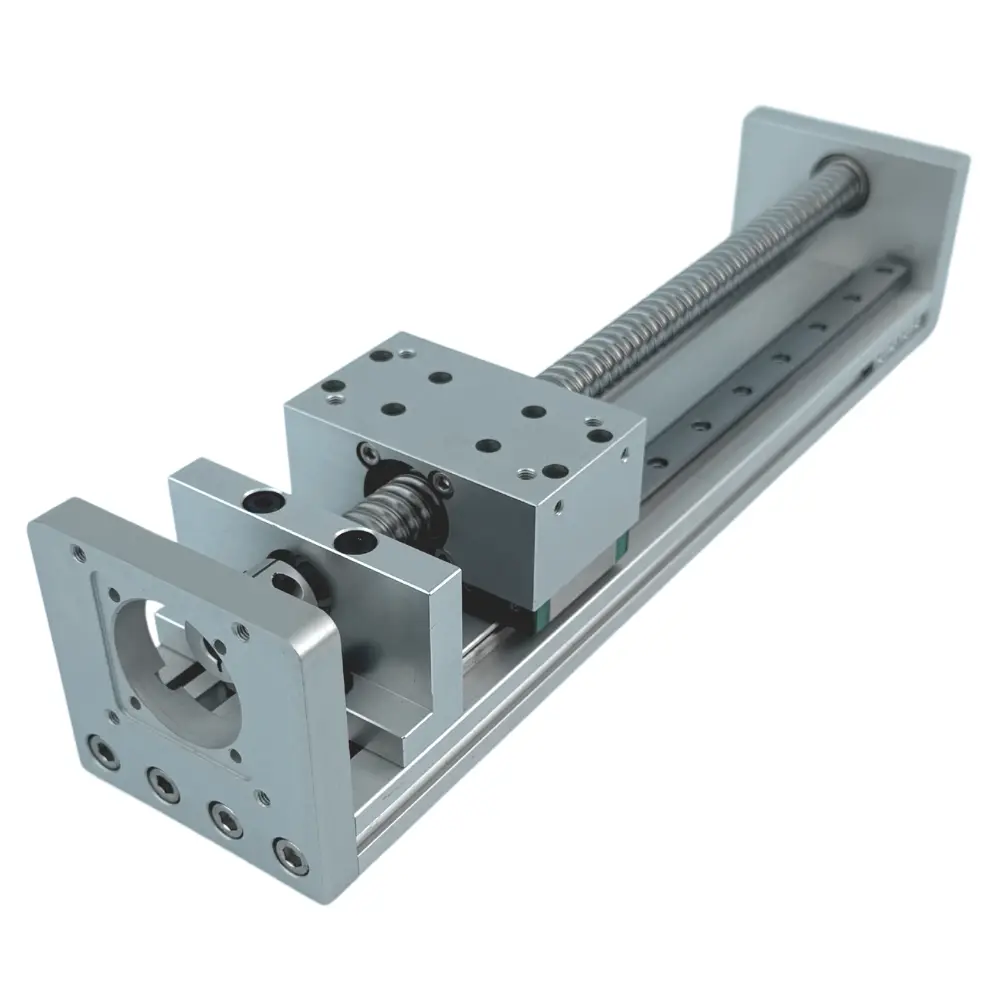

The Mechatronica 80mm Wide Ball Screw Linear Actuator is built for compact precision without compromising on strength. Designed around the widely used 20 Series Aluminium Extrusion (20x80mm) and fitted with dual MGN linear rails and two precision bearings, this actuator is ideal for lightweight CNC systems, pick-and-place robotics, and automation where accuracy and reliability are critical.
Its slim profile and rugged construction make it a perfect fit for space-constrained setups and modular multi-axis systems.
Key Features – Compact Form, Industrial Performance

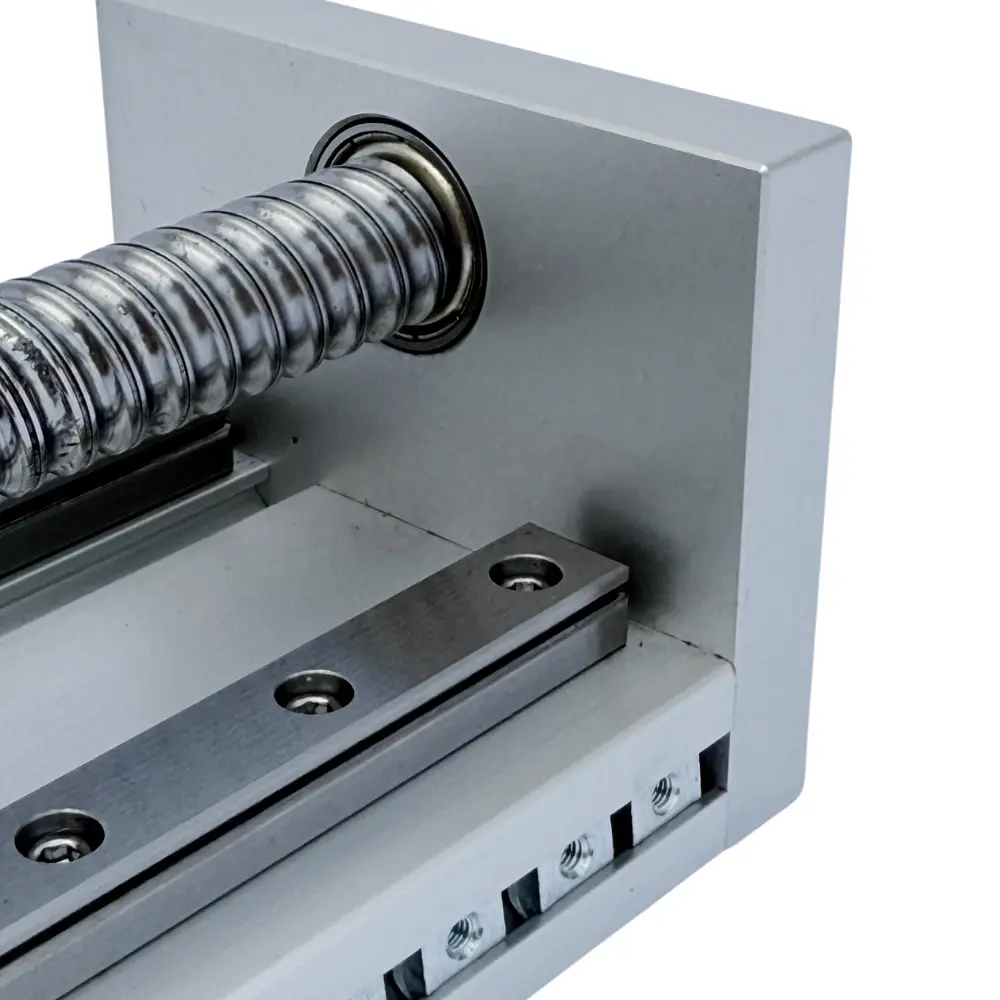

12mm End Plates
Built for mechanical integrity, the actuator features 12mm thick machined aluminium end plates that reduce deflection and absorb vibration under dynamic loads. This structural reinforcement helps maintain consistent alignment and enhances long-term reliability in motion-intensive applications.

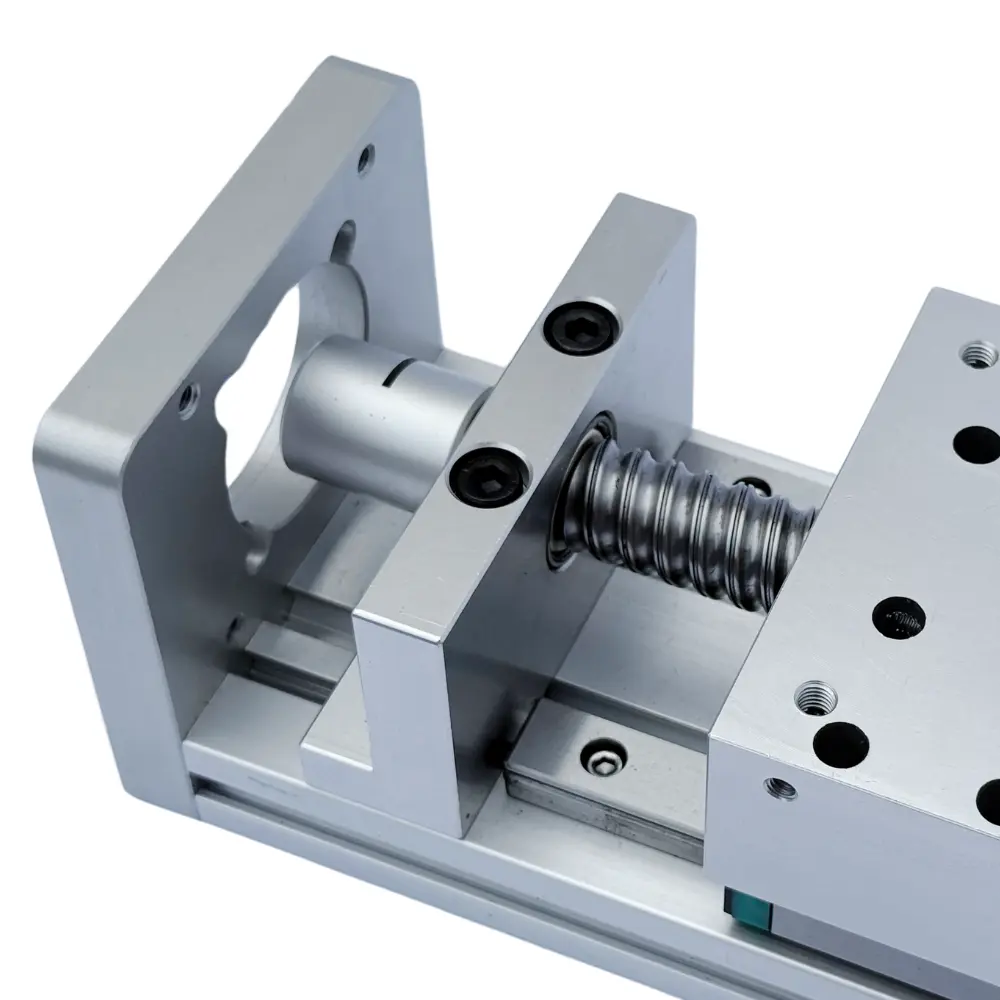

Compact, Integrated Coupling System
The motor coupling is fully enclosed within the actuator body, minimising external dimensions and allowing closer integration with other components. This design eliminates the bulk of traditional external couplings, reducing overall system footprint.

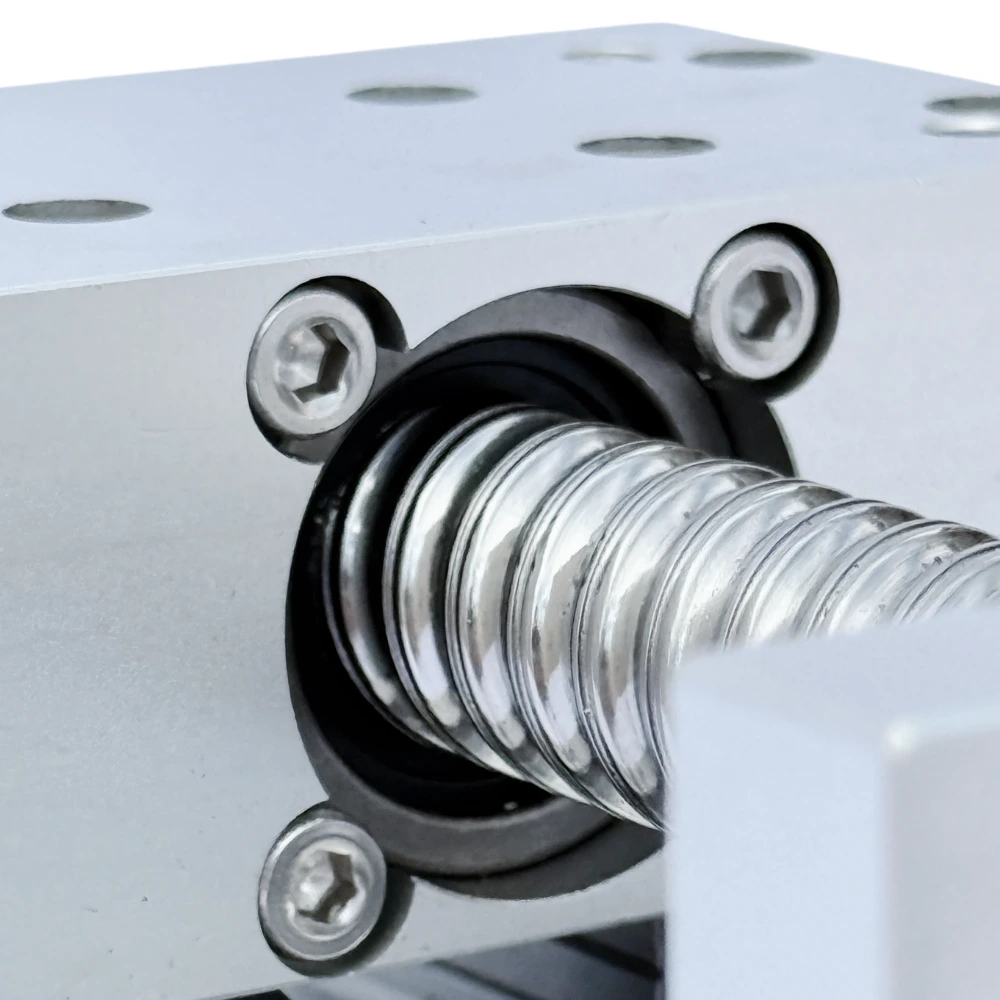

16mm Diameter Ball Screw with 10mm Pitch
A precision-ground 16mm ball screw with a 10mm lead pitch provides an excellent balance between high-speed travel and fine motion control. With minimal friction and high thrust capacity, it ensures smooth, repeatable movement across a wide range of industrial and automation tasks.
Preloaded Nuts for Simplified Integration
Each actuator includes a set of 8 x M4 T-Nuts (4 per side) and 8 x M6 T-Nuts (bottom face) pre-installed inside the extrusion. This allows for fast, secure, and highly adaptable mounting of the actuator into your system without additional hardware or modifications. The combination of sizes gives you flexibility to attach your actuator to both lightweight fixtures and heavy-duty frames as well as adding Inductive Switches to it.

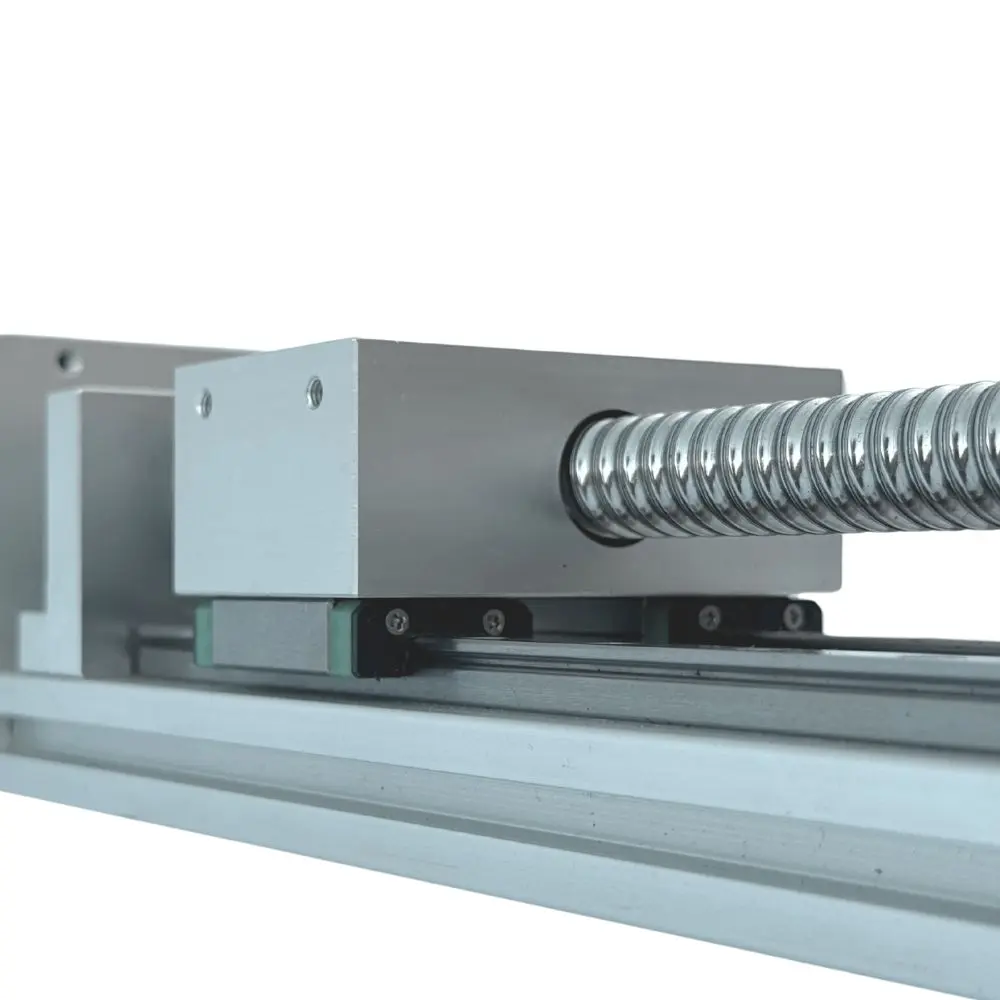

30mm Precision Gantry Plate + MGN12 Bearings
At the core of the linear motion system is a 30mm thick CNC-machined gantry plate mounted on dual MGN12 linear bearings. The plate includes 4x M5 tapped spaced at 30 and 60mm centre-to-centre offering an adaptable platform for mounting tools, fixtures, sensors, or secondary axis systems.

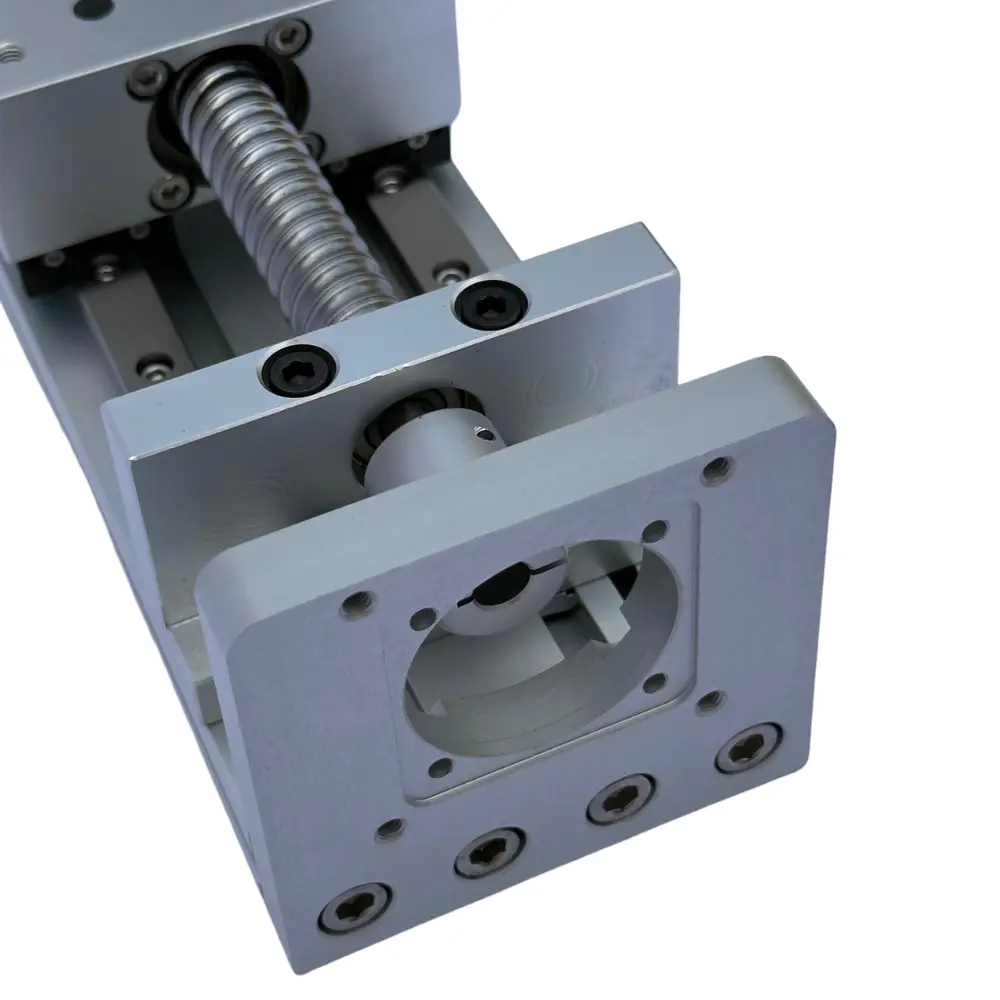

Motor Compatibility — NEMA17 & NEMA23
The mounting system is designed for direct compatibility with both NEMA17 and NEMA23 stepper motors, giving you a versatile range of motion control options. No custom brackets or modifications required — just bolt on your preferred motor and go.
Popular 20 Series Aluminium Extrusion
The actuator body is constructed from a 20x80mm aluminium extrusion profile — a compact yet strong format widely used in industrial framing systems. It offers excellent stiffness-to-weight ratio and is supported by T-slot channels on two sides and the bottom face for easy, modular integration into machine frames or enclosures.
Technical Specifications
| Specification | Value |
|---|---|
| Actuator Width, Height and Length | 80mm, 70mm and 500mm |
| Ball Screw Diameter | 16 mm |
| Ball Screw Pitch | 10 mm |
| Rail System | Dual MGN12 Linear Rails |
| Bearing Blocks | 2x MGN12C Bearing Blocks |
| Gantry Plate Thickness | 30 mm (CNC Machined 6061 Aluminium) |
| Gantry Plate Finish | Clear Anodised |
| End Plate Thickness | 12 mm (CNC Machined 6061 Aluminium) |
| End Plate Finish | Clear Anodised |
| Mounting Holes (Gantry Plate) | 4x M5 Tapped Holes, 30 and 60mm center-to-center |
| Extrusion Profile | 20 x 80 mm Aluminium Profile |
| Extrusion Finish | Clear Anodised |
| Preloaded T-Nuts Included | 8x M4 T-Nuts (4 per side) - Perfect for Sensor Mounting 8x M6 T-Nuts (Bottom) |
| Extrusion Mounting Points | Continuous T-slot Channels (2 sides) + Bottom Face |
| Motor Compatibility | NEMA17 / NEMA23 |
| Stroke Length | 380 mm |
| Positional Repeatability | ±0.02 mm |
| Max Dynamic Load | Up to 40kg (application-dependent) |
| Max Travel Speed | Up to 200 mm/s (application-dependent) |
Applications
- Compact CNC Systems (e.g., laser engravers, desktop routers)
- Pick-and-Place Automation
- Laboratory Automation Equipment
- Lightweight Gantry Systems
- Modular Multi-Axis Assemblies
